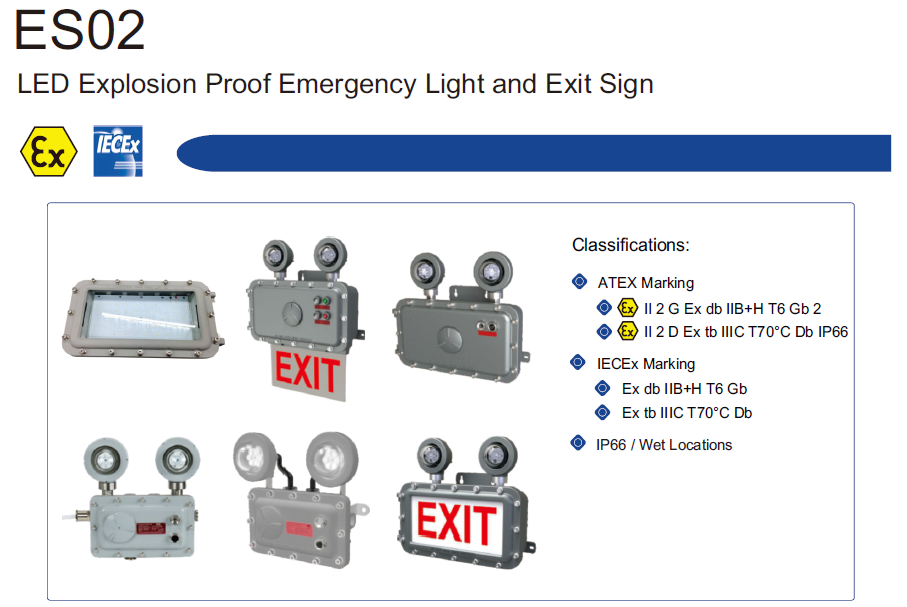

EX-ES02 A1/A2 AC100-277V IP66 LED EXPLOSION PROOF ANTI SPARK EMERGENCY AND EXIT SIGN LIGHT [LUMINAIRE/LUMINAIRE+EMERGENCY BACKUP BATTERY]

 Product Description:

Ensure safety and compliance in hazardous locations with the EX-ES02 A1/A2 LED Explosion Proof Emergency & Exit Sign Light, designed to operate reliably in environments prone to flammable gases, dust, and vapor. Built with die-cast aluminum housing and tempered glass signage, this IP66-rated flameproof luminaire is available with or without an integrated emergency backup battery for 3-hour operation.

Ideal for Zone 1 and Zone 2 hazardous areas, this luminaire provides customizable label content, a choice of beam angles, and multi-mounting options, making it a flexible and efficient solution for industrial emergency and exit lighting.


 Specifications:

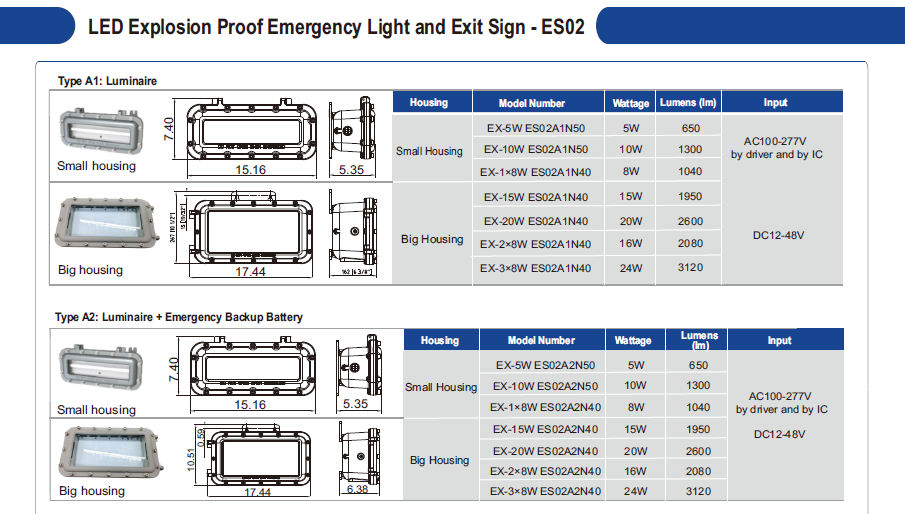

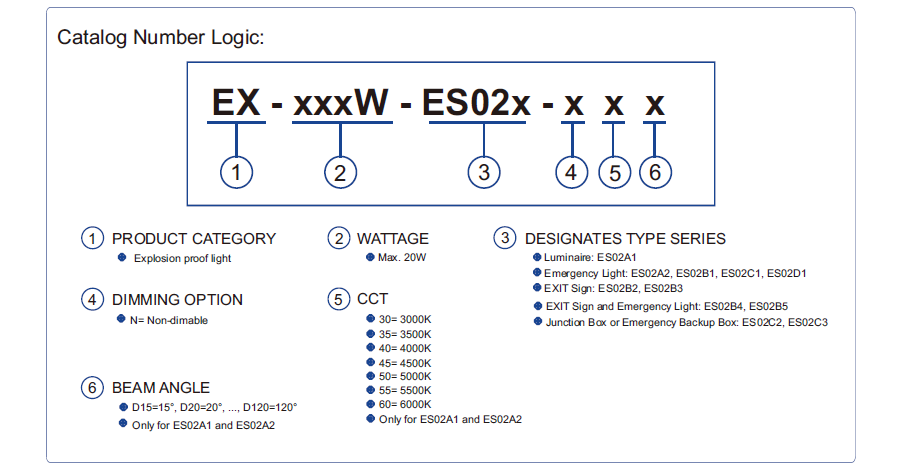

• Model: ES02A1, ES02A2

• Type: Explosion Proof Emergency & Exit Sign Light

• Power Consumption: 5W / 8W / 10W / 15W / 16W / 20W / 24W

• Voltage: AC100-277V

• Lumen Output: 650LM – 3120LM

• Colour Temperature: 3000K – 6000K

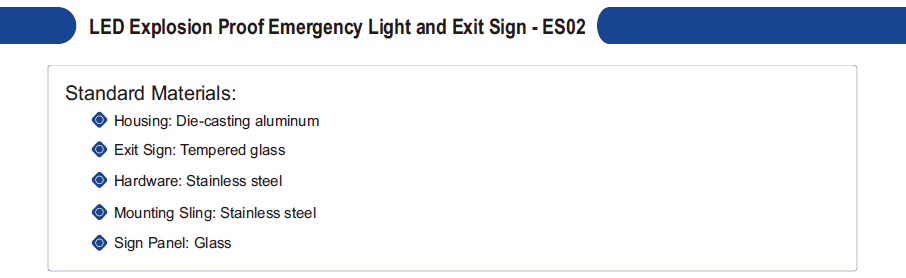

• Material:

  • Housing: Die-cast aluminum

  • Exit Sign: Tempered glass

  • Hardware & Mounting Sling: Stainless steel

  • Sign Panel: Glass

• Beam Angle Options:

  • D15 = 15°

  • D20 = 20°

  • D120 = 120°

• Lifetime: 50,000 hours

• Dimmable: No (Non-dimmable)

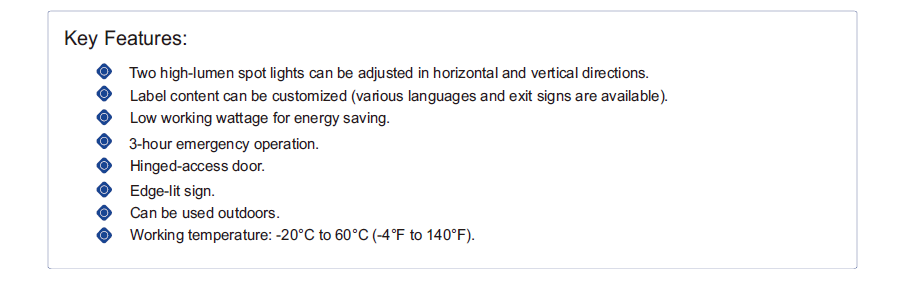

 Key Features:

•  Explosion-proof & anti-spark – Certified for use in hazardous areas

•  3-hour emergency operation with optional backup battery

•  Adjustable dual high-lumen spotlights (horizontal & vertical directions)

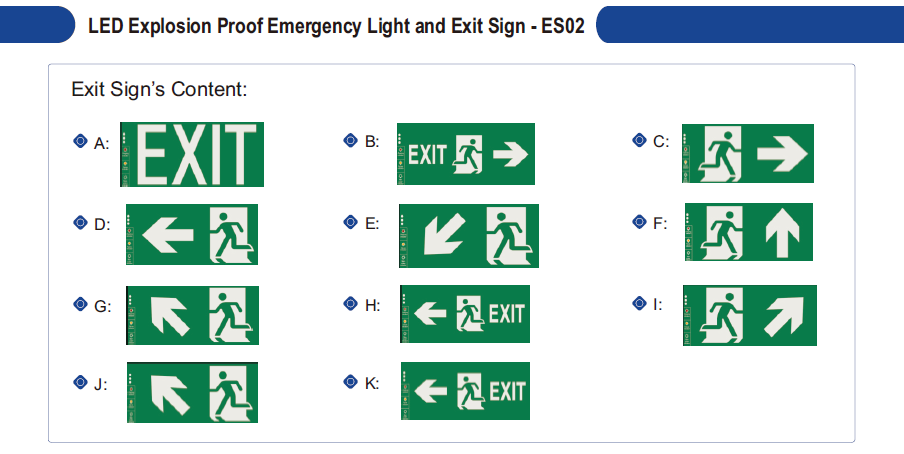

•  Customizable signage – Multilingual & directional options available

•  Wide/Narrow beam optics – Tailored illumination for diverse needs

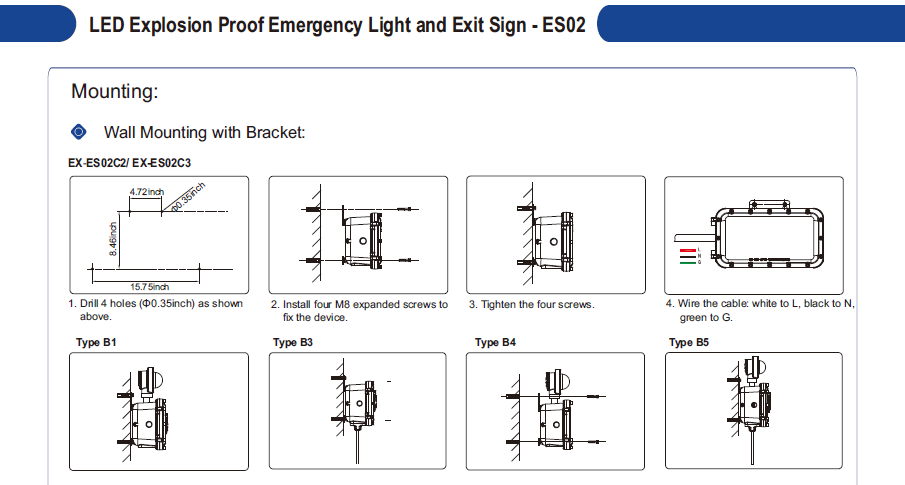

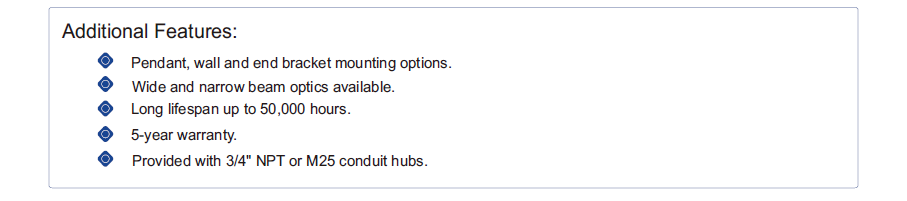

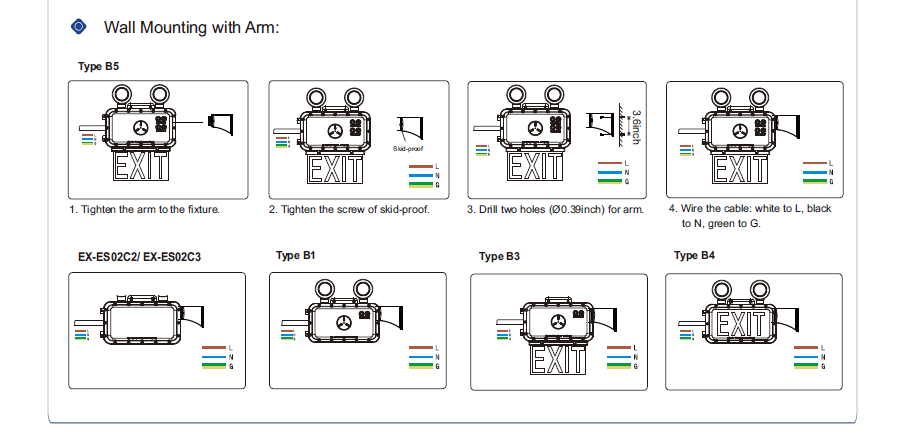

•  Multiple mounting options – Pendant, wall, and end bracket installation

•  Edge-lit emergency sign – Clear visibility in low-light conditions

•  Outdoor ready – IP66-rated for all-weather use

•  Energy efficient – Low operating wattage
