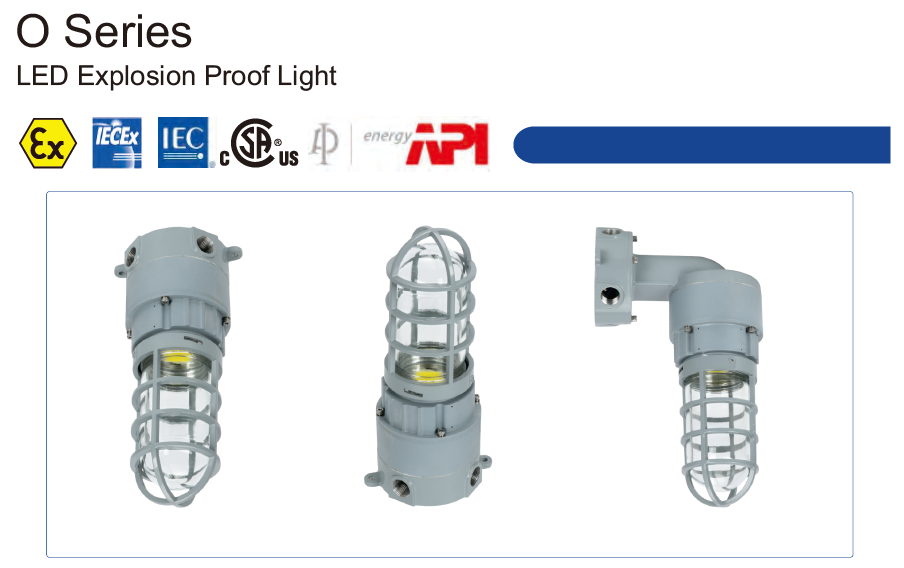

O SERIES 10W-40W AC100-277V IP66 LED EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK OBSTRUCTION BEACON LIGHT

O SERIES 10W-40W AC100-277V IP66 LED EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK OBSTRUCTION BEACON LIGHT

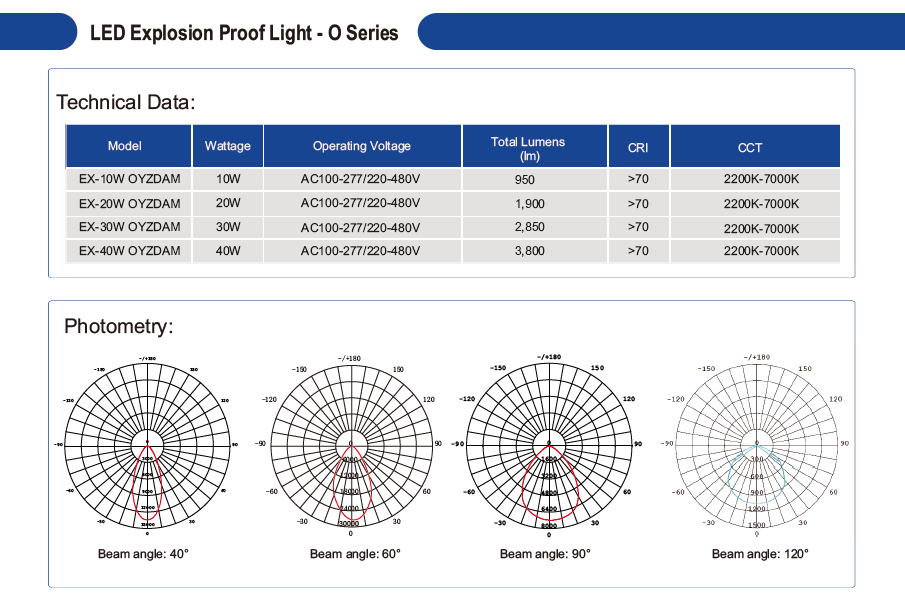

Specifications
Wattage (W)
10W/20W/30W/40W
Voltage (V)
AC100-277V/ 220-480V
Type
LED EXPLOSION PROOF OBSTRUCTION LIGHT

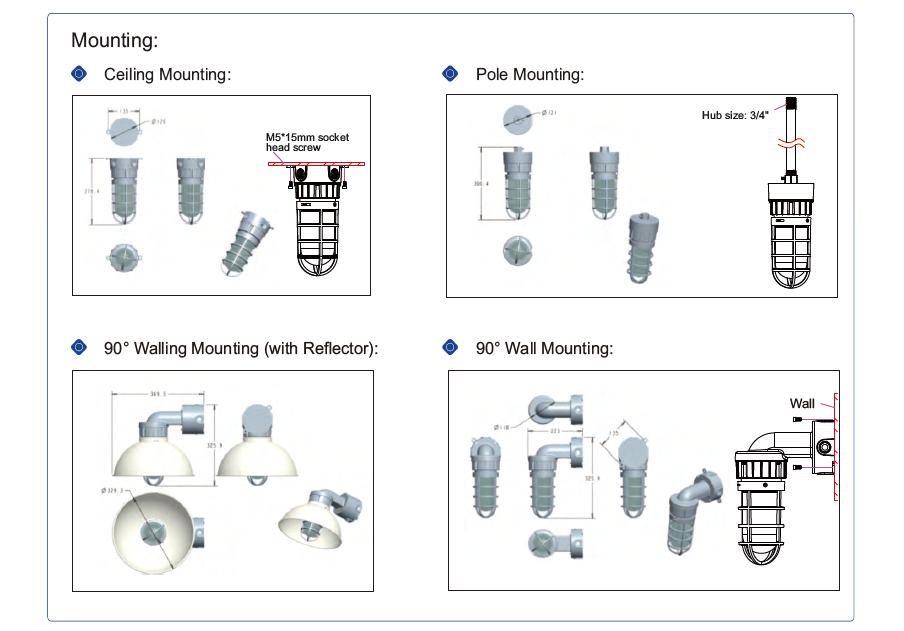

Mounting
Pemasangan Siling Pemasangan Tiang Pemasangan Dinding 90 Darjah (Dengan Reflektor) Pemasangan Dinding 90 Darjah

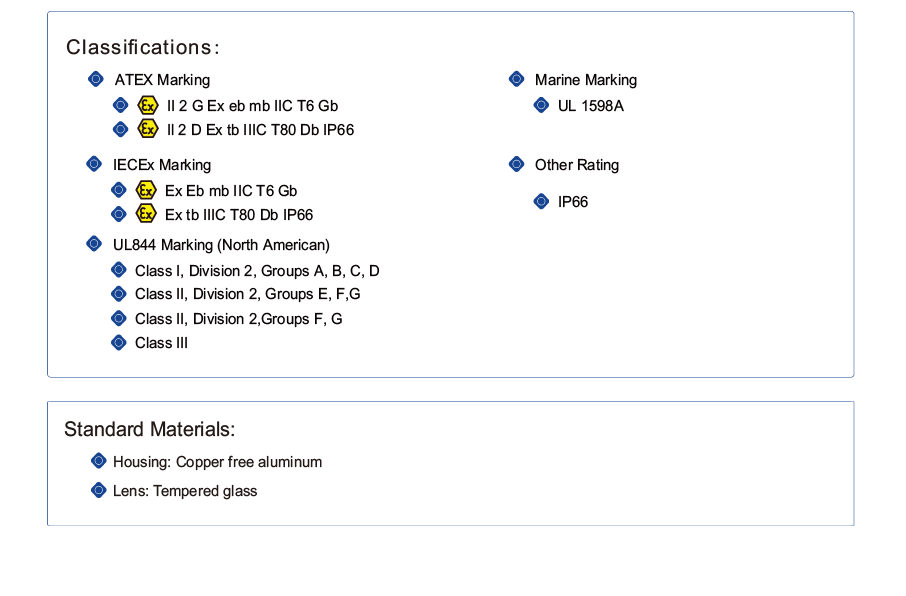

Material
Housing: Copper Free Aluminum Lens: Tempered Glass
Lumen (lm)
950LM-3800LM
Lifetime (Hours)
50000Hrs
IP Rating
IP66
Dimmable
D= Dimmable N= Non-dimmable
Colour Temperature
2200K-7000K
Color Rendering Index (CRI)
>70
Beam Angle
D40= 40 degree D60= 60 degree D90= 90 degree D120= 120 degree

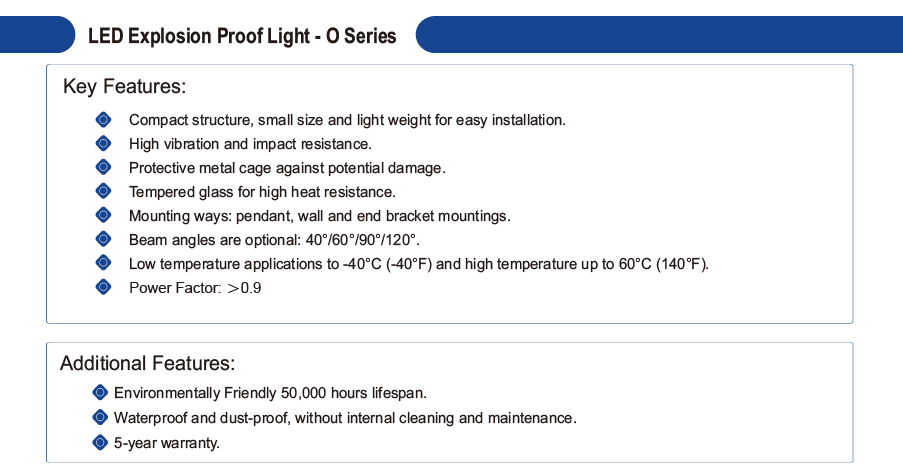

Features
Compact Structure, small size and light weight for easy installation High vibration and impact resistance Protective metal cage against potential damage Tempered glass for high heat Power factor: >0.9 Waterproof and dust-proof, without internal cleaning and maintenance 5 Year warranty

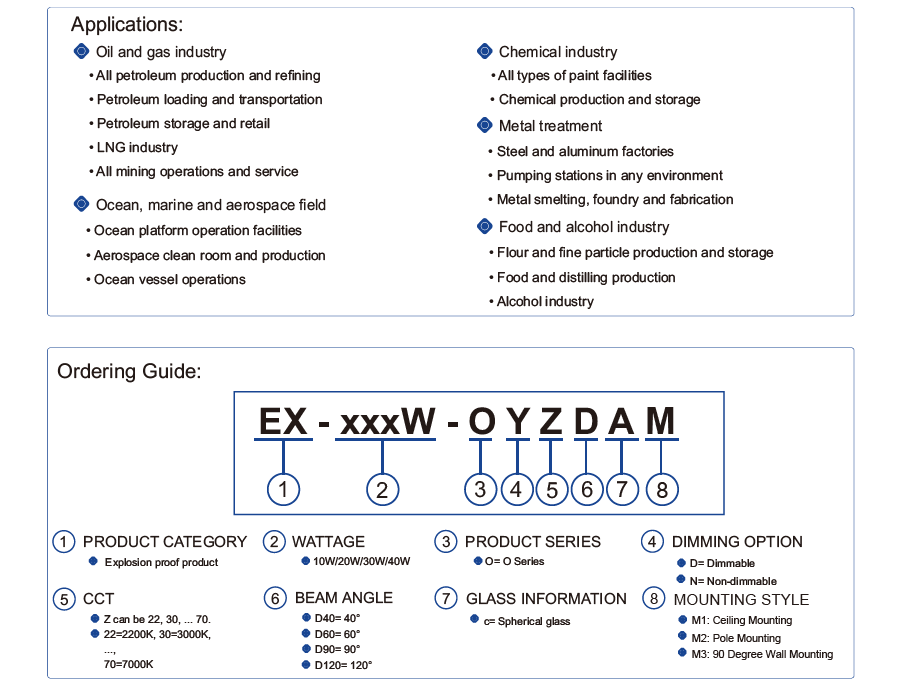

Application
Oil and Gas industry Ocean, Marine and aerospace field Chemical industry Metal Treatment Food and alcohol industry

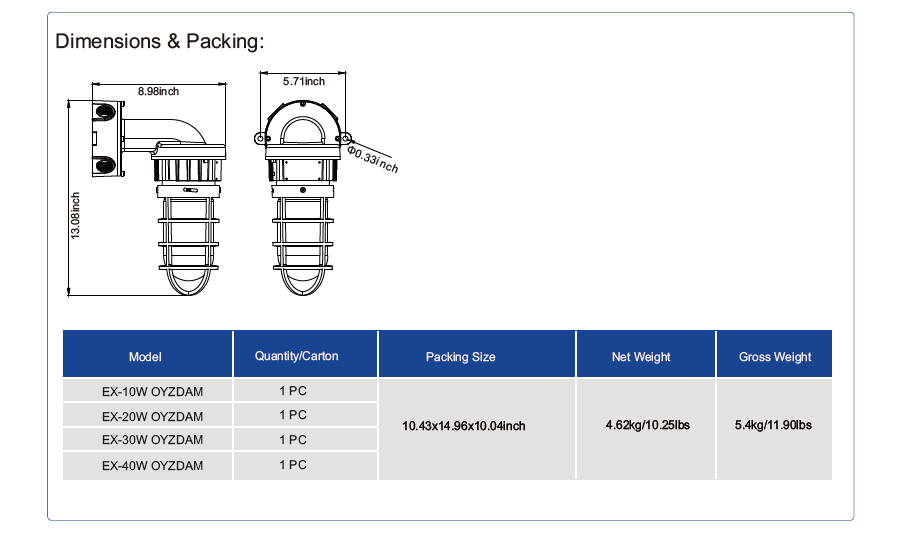

Product Dimensions (L*W*H)
22.80 x 14.50 x 33.22 (CM)
Details

O SERIES 10W-40W AC100-277V IP66 LED EXPLOSION PROOF ANTI SPARK OBSTRUCTION BEACON LIGHT








Product Description:

O SERIES 10W-40W AC100-277V IP66 LED Explosion Proof Anti-Spark Obstruction Beacon Light
Upgrade your safety lighting with the O SERIES LED Explosion Proof Obstruction Light, built to perform in hazardous, high-risk industrial environments. This flameproof, anti-spark beacon light is designed for reliable operation in areas exposed to explosive gases, dust, or flammable vapors. Ideal for oil & gas facilities, chemical plants, refineries, offshore platforms, and other Zone 1 & Zone 2 hazardous locations.

Key Features:

  • Wattage Options: 10W, 20W, 30W, 40W – customizable to your site requirements

  • Voltage Range: AC100-277V wide input for global compatibility

  • Ingress Protection: IP66 Rated – Dust-tight & water-resistant for all-weather use

  • Explosion Proof Design: Engineered for hazardous areas, compliant with flameproof standards

  • Anti-Spark Construction: Ensures operational safety in volatile conditions

  • Long-Lasting LED Technology: High-lumen output, energy-efficient, low maintenance

  • Application: Obstruction lighting for towers, high-rise structures, helipads, refineries, zones requiring certified safety illumination

  • Mounting: Suitable for wall, pole, or bracket installations

  • Color Options: Red, Amber, and other colors available upon request

Availability:

EX STOCK SUBJECT TO PRIOR SALES OR INDENT
For pricing, technical datasheet, or bulk order inquiries, please kindly send us an enquiry today. Our team will respond promptly with the latest stock and support information.
