EX-ES02 B3/B5 AC100-277V IP66 LED PENDANT EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK EMERGENCY AND EXIT SIGN LIGHT ZONE 1 & 2 [EXIT SIGN+EMERGENCY BACKUP BATTERY/EXIT SIGN+LUMINAIRE+EMERGENCY BACKUP BATTERY]

EX-ES02 B3/B5 AC100-277V IP66 LED PENDANT EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK EMERGENCY AND EXIT SIGN LIGHT ZONE 1 & 2 [EXIT SIGN+EMERGENCY BACKUP BATTERY/EXIT SIGN+LUMINAIRE+EMERGENCY BACKUP BATTERY]


Specifications
Wattage (W)
5W/7W-20W
Voltage (V)
AC100-277V
Type

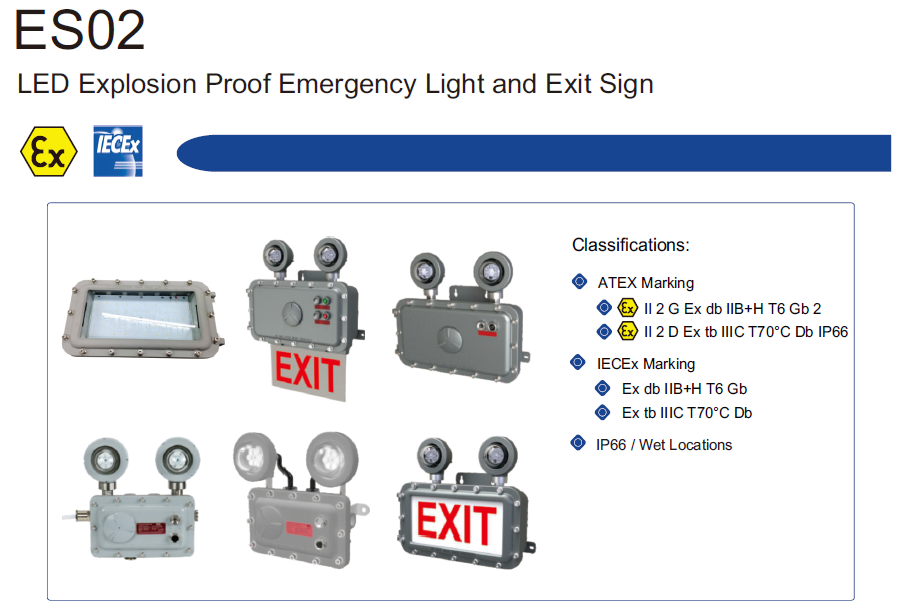

EXPLOSION PROOF EMERGENCY AND EXIT SIGN LIGHT
Product Dimensions (L*W*H)

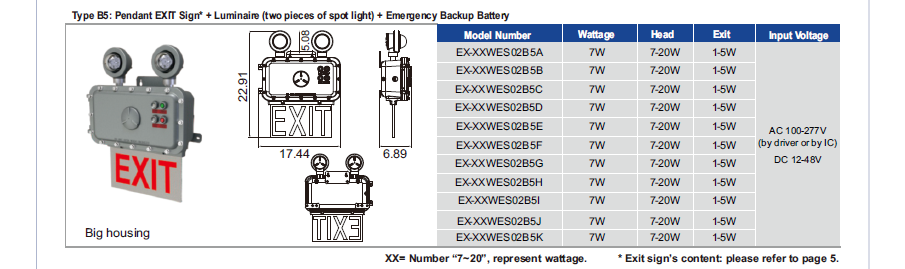

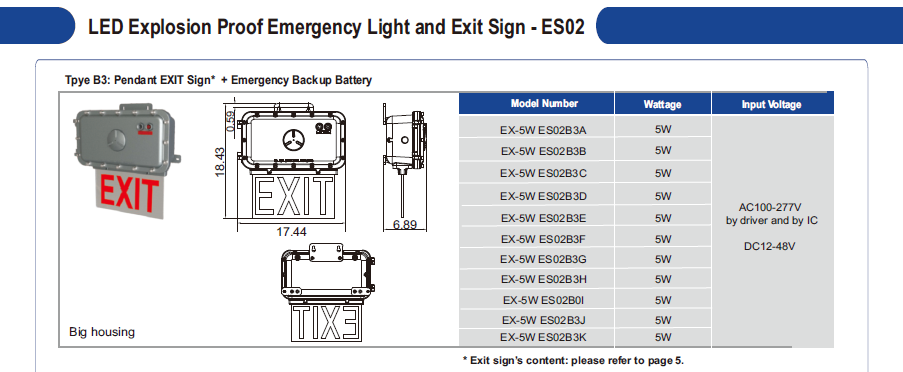

B3= 44.3 x 17.5 x 46.8 (CM) B5= 44.3 x 17.5 x 58.19 (CM)

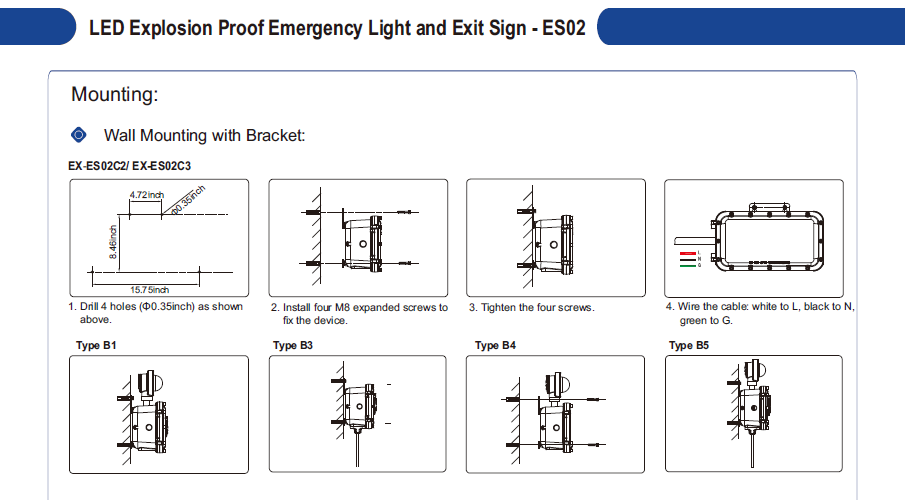

Mounting

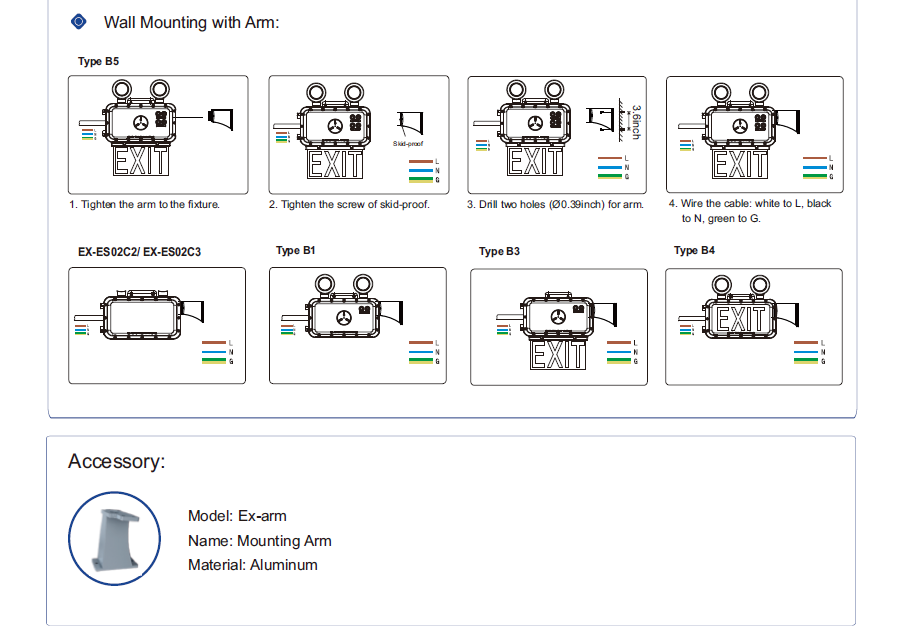

Wall Mounting With Bracket Wall Mounting With Arm

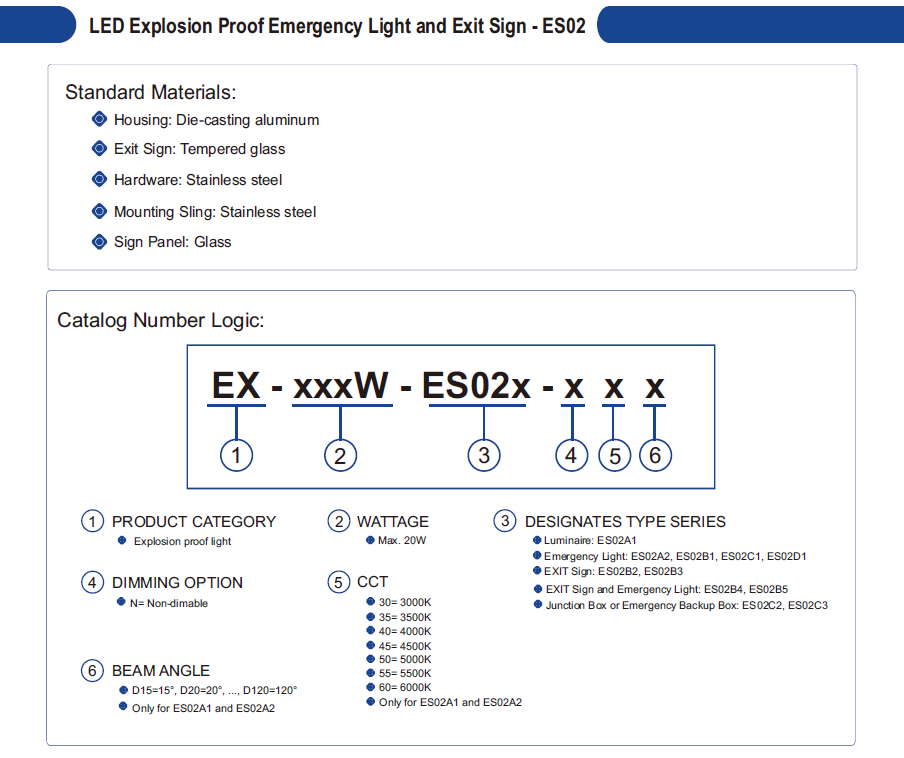

Model Number
ES02B3, ES02B5
Material
Housing: Die-casting aluminum Exit sign: Tempered glass Hardware: Stainless steel Mounting Sling: Stainless steel Sign Panel: Glass
Dimmable
Non-dimmable

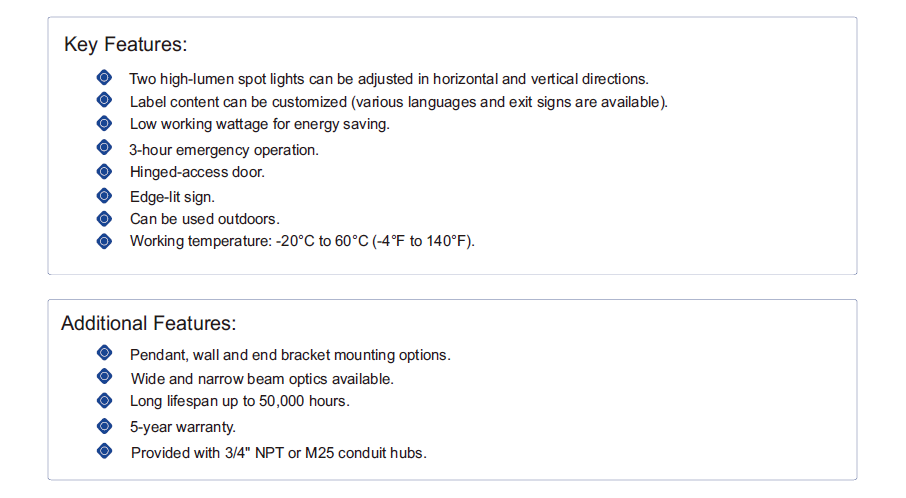

Features

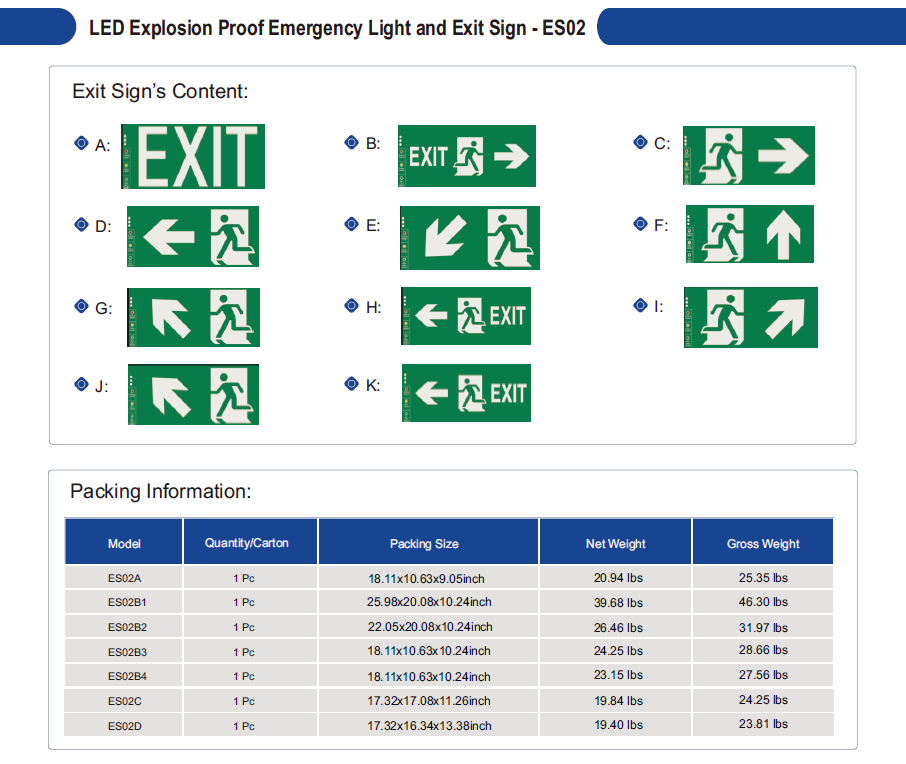

Two high-lumens spot light can be adjusted in horizontal and vertical directions. Label content can be customized (various languages and exit signs are available). Low working wattage for energy saving. 3-hour emergency operation. Hinged-access door. Edge-lit sign. Can be used outdoors. Pendant, wall and end bracket mounting options. Wide and narrow beam options available.
Details

EX-ES02 B3/B5 AC100-277V IP66 LED PENDANT EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK EMERGENCY AND EXIT SIGN LIGHT ZONE 1 & 2 [EXIT SIGN+EMERGENCY BACKUP BATTERY/EXIT SIGN+LUMINAIRE+EMERGENCY BACKUP BATTERY]








Product Description (SEO Optimized)

Ensure maximum safety in hazardous environments with the EX-ES02 B3/B5 LED Pendant Explosion Proof Emergency and Exit Sign Light, specially designed for flammable zones and industrial hazardous areas. Built with IP66 waterproof protection, this flameproof and anti-spark solution is suitable for Zone 1 & Zone 2 applications.

Product Highlights:

  • Model: EX-ES02 B3/B5

  • Voltage: AC100-277V

  • Ingress Protection: IP66 – Dust-tight and protected against powerful water jets

  • Mounting Type: Pendant

  • Function Options:

    • Exit Sign + Emergency Backup Battery

    • Exit Sign + Luminaire + Emergency Backup Battery

  • Application: Hazardous Locations, Oil & Gas Facilities, Chemical Plants, Offshore Platforms

  • Explosion Proof Design: Compliant with strict safety standards

  • Flameproof & Anti-Spark Construction for reliable emergency operation

  • Battery Backup: Ensures visibility and safety during power outages

  • LED Technology: Long lifespan and low power consumption


View more about EX-ES02 B3/B5 AC100-277V IP66 LED PENDANT EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK EMERGENCY AND EXIT SIGN LIGHT ZONE 1 & 2 [EXIT SIGN+EMERGENCY BACKUP BATTERY/EXIT SIGN+LUMINAIRE+EMERGENCY BACKUP BATTERY] on main site
