EX-ES02 B4 AC100-277V IP66 LED RECESSED EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK EXIT SIGN + LUMINAIRE + EMERGENCY BACKUP BATTERY ZONE 1 & 2

EX-ES02 B4 AC100-277V IP66 LED RECESSED EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK EXIT SIGN + LUMINAIRE + EMERGENCY BACKUP BATTERY ZONE 1 & 2


Specifications
Wattage (W)
7W
Voltage (V)
AC100-277V
Type
EXPLOSION PROOF EMERGENCY AND EXIT SIGN LIGHT
Mounting

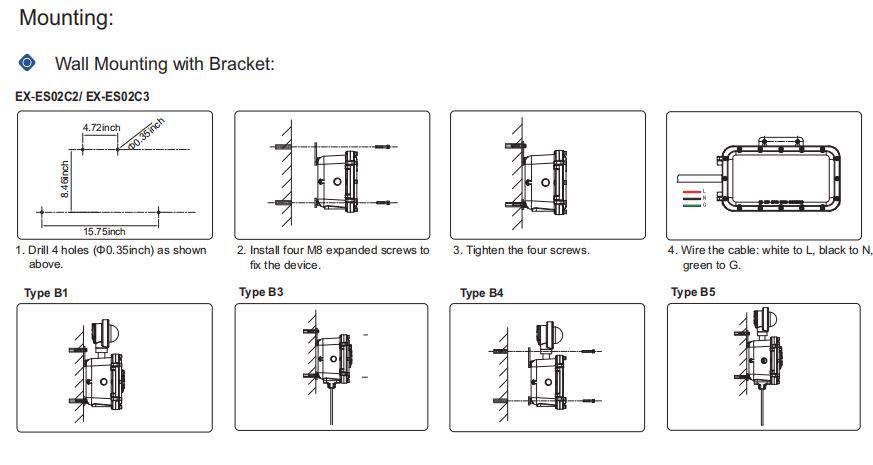

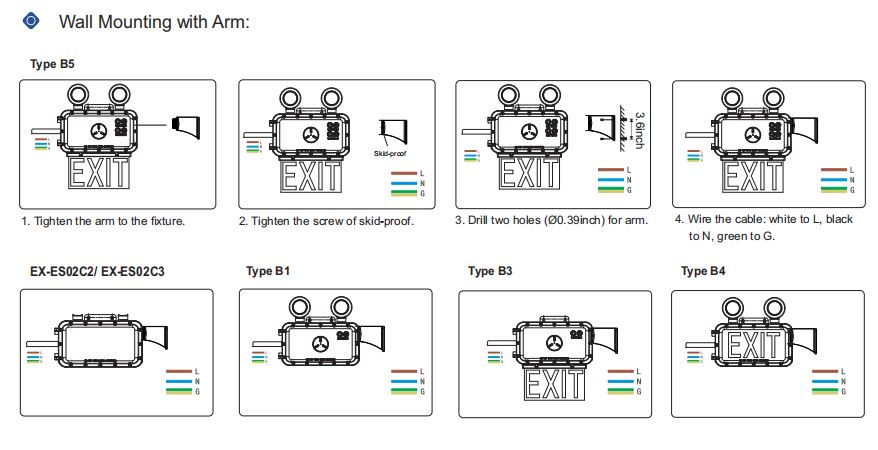

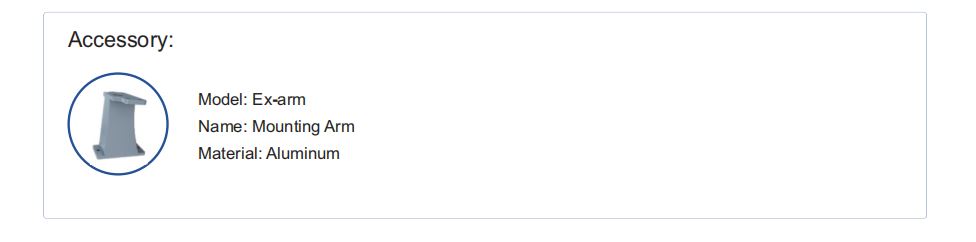

Wall Mounting With Bracket Wall Mounting With Arm
Model Number
ES02B4

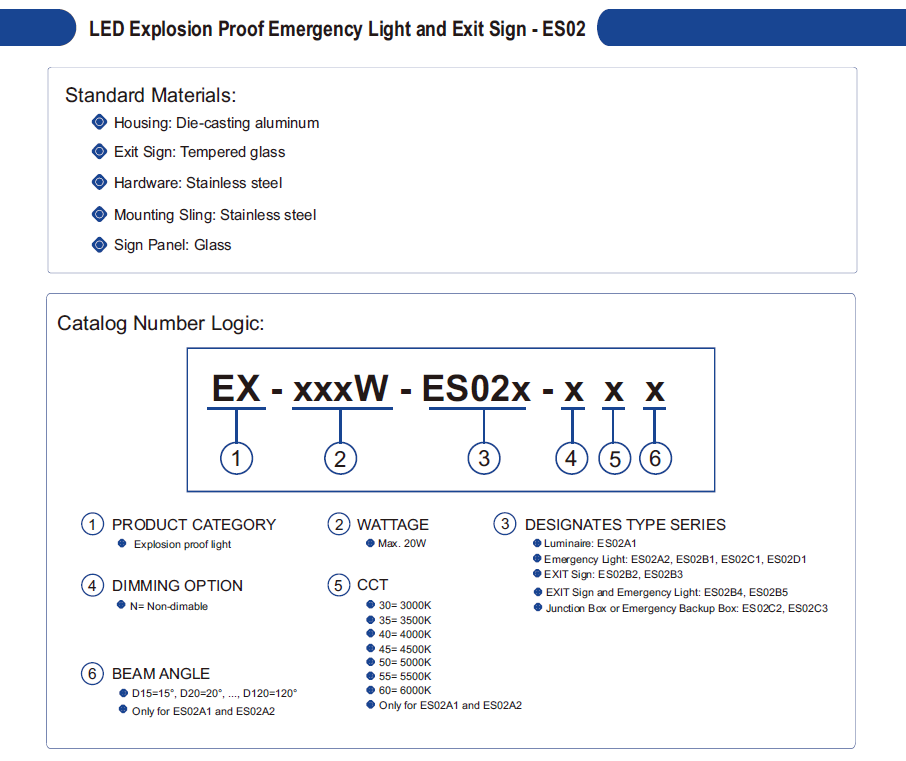

Material
Housing: Die-casting aluminum Exit sign: Tempered glass Hardware: Stainless steel Mounting Sling: Stainless steel Sign Panel: Glass
Lifetime (Hours)
50000hrs
IP Rating
IP66

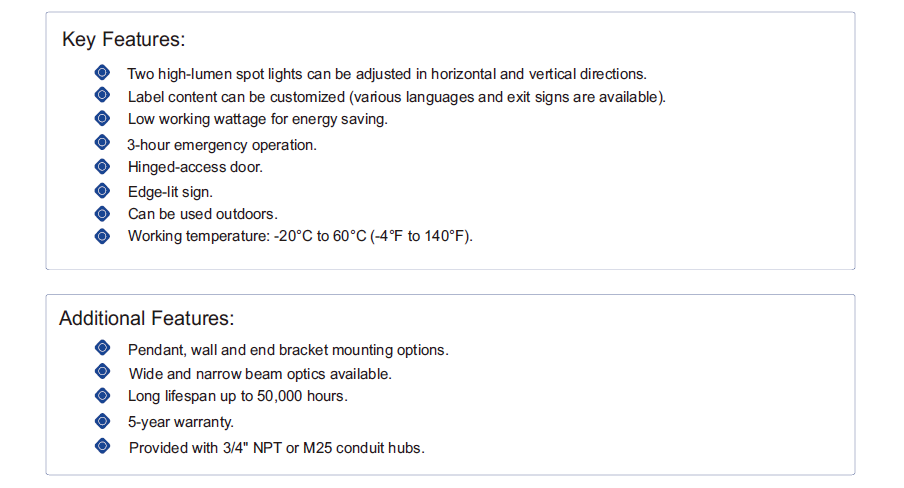

Features

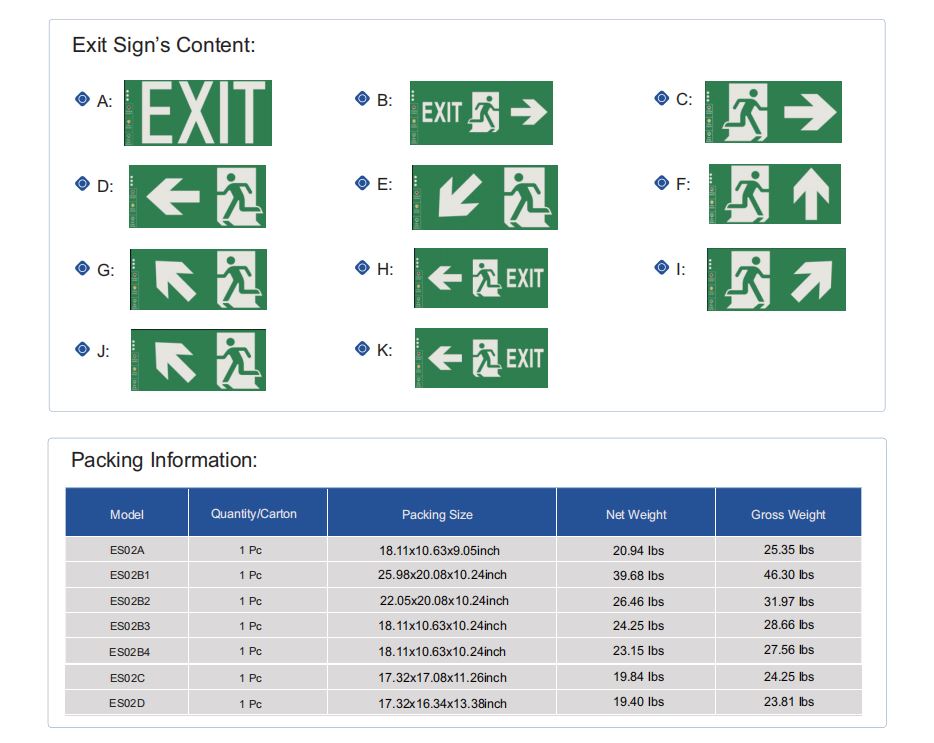

Two-high lumens spot light can be adjusted in horizontal and vertical directions. Label content can be customized (various languages and exit signs are available) Low working wattage for energy saving 3-hour emergency operation Hinged-access door Edge lit sign Can be used outdoors Pendant, wall and end bracket mounting options Wide and narrow beam optics available
Dimmable
Non-dimmable

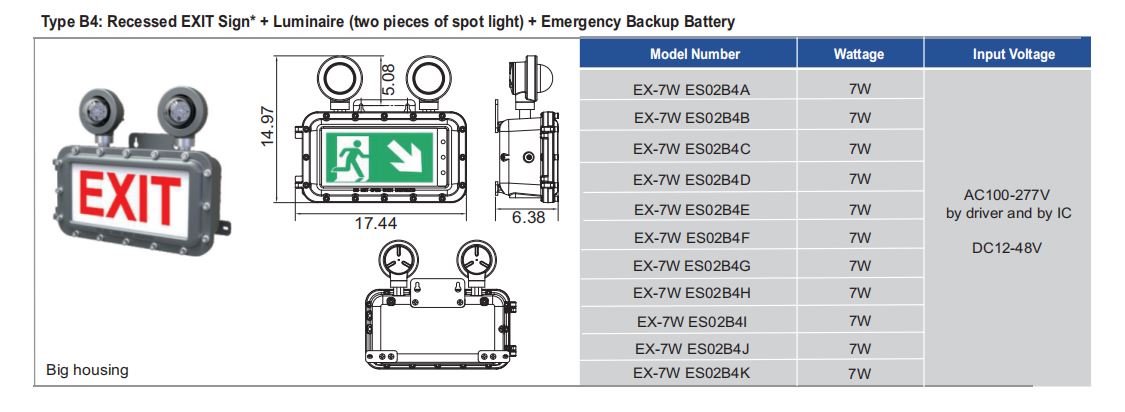

Product Dimensions (L*W*H)
44.30 x 16.2 x 38.02 (CM)
Details

EX-ES02 B4 AC100-277V IP66 LED RECESSED EXPLOSION PROOF HAZARDOUS FLAMEPROOF ANTI SPARK EXIT SIGN + LUMINAIRE + EMERGENCY BACKUP BATTERY ZONE 1 & 2


Product Description:

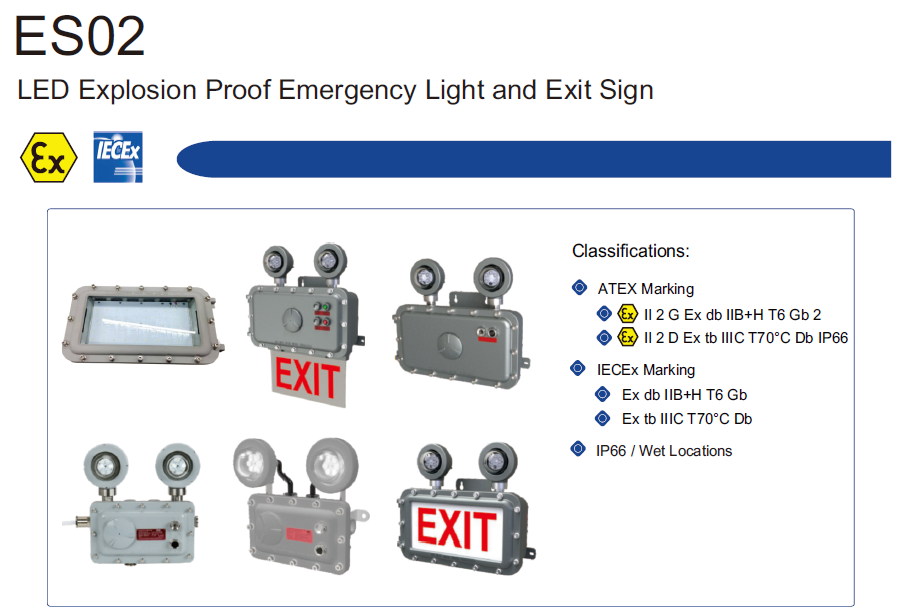

EX-ES02 B4 AC100-277V IP66 LED Recessed Explosion Proof Exit Sign + Luminaire + Emergency Battery Backup

Ensure safety and compliance in hazardous environments with the EX-ES02 B4 Explosion Proof Recessed LED Exit Sign, engineered for reliable performance in explosive gas and dust zones. Designed with anti-spark and flameproof technology, this recessed fixture integrates an exit sign, emergency backup battery, and LED luminaire for all-in-one safety and visibility.

Key Features:

  • Input Voltage: AC100-277V wide input range

  • IP66 Rated: Superior protection against water and dust

  • Explosion Proof Certified: Built for hazardous and flammable environments

  • Integrated Emergency Battery Backup: Ensures operation during power outages

  • LED Luminaire Included: High-visibility illumination for safe evacuation

  • Anti-Spark Design: Flameproof and ignition-protected for ultimate safety

  • Recessed Mounting: Sleek and secure installation for industrial applications

  • Durable Housing: Designed for long-term performance in harsh conditions

Applications:

  • Oil & Gas Facilities

  • Petrochemical Plants

  • Chemical Storage Areas

  • Offshore Platforms

  • Hazardous Warehouses

  • Manufacturing Zones with Flammable Gases or Dust

.
