Details

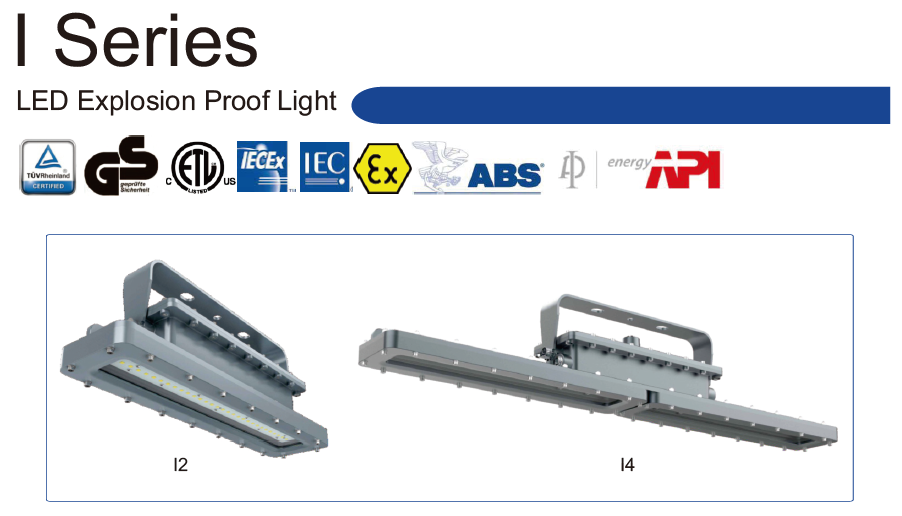

EX I SERIES 20W-120W AC100-277V IP66 DIMMABLE LED EXPLOSION PROOF ANTI SPARK LINEAR LIGHT [I2/I4]

Product Description:

EX I SERIES 20W–120W LED Explosion Proof Linear Light [I2/I4] is an industrial-grade lighting solution engineered for hazardous environments such as oil & gas, chemical plants, and high-dust or high-humidity zones. Certified with an IP66 rating, this flameproof, anti-spark luminaire is built with a copper-free aluminum housing, tempered glass lens, and marine-grade stainless steel hardware, ensuring exceptional durability and safety.

Powered by high-efficiency SMT LEDs and Meanwell drivers, it delivers superior performance with luminous output ranging from 2800LM to 16800LM, depending on wattage (20W–120W). Its dimming function, optional battery backup, and multiple mounting options (ceiling, wall, chain, pole) make it a flexible choice for both retrofit and new installations.

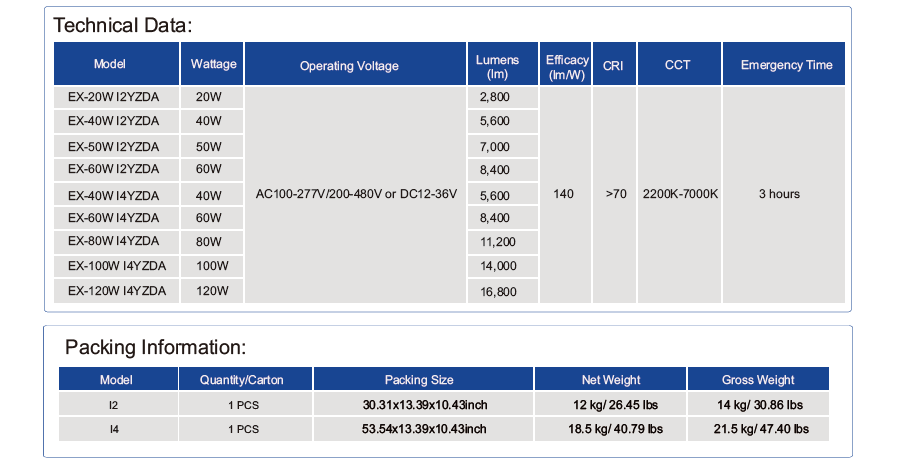

Key Specifications:

• Wattage: 20W–120W

• Voltage: AC100–277V / 200–480V

• Lumen Output: 2800LM–16800LM

• Color Temperature: 2200K–7000K

• CRI: >70

• Beam Angles: 40° / 60° / 90° / 120°

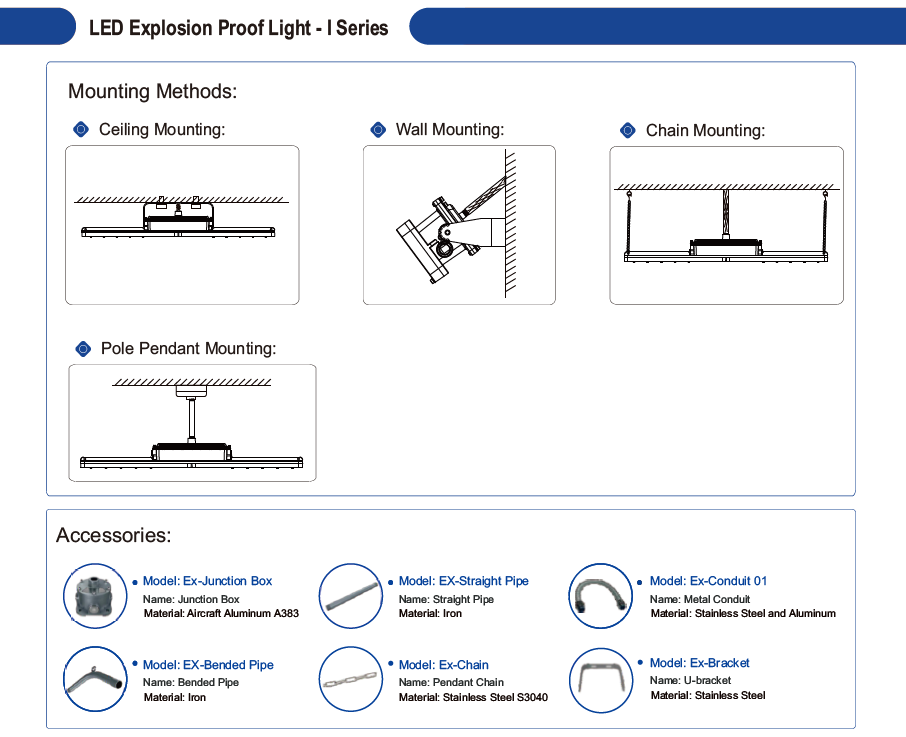

• Mounting: Ceiling / Wall / Chain / Pole

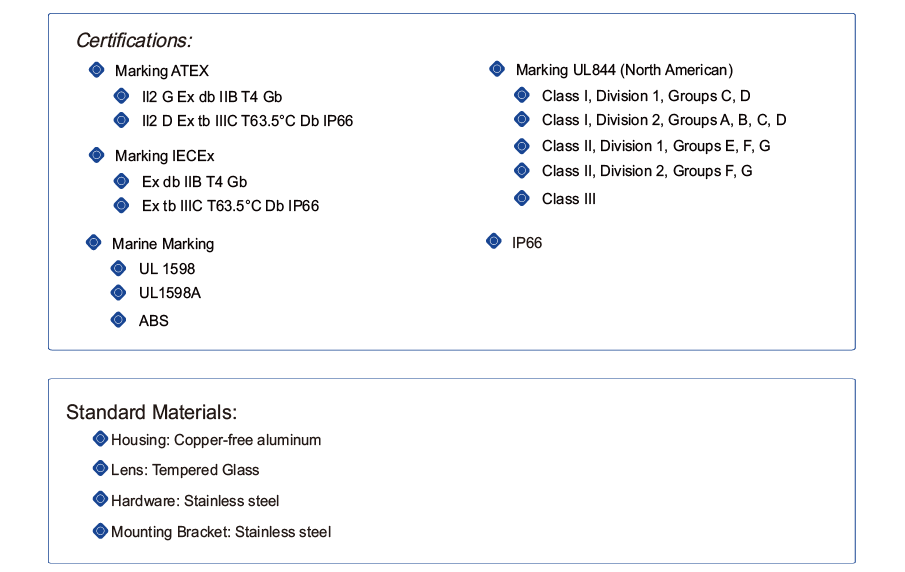

• Material:

  • Housing: Copper-free Aluminum

  • Lens: Tempered Glass

  • Hardware & Mounting: Stainless Steel

• Dimmable: Yes (Optional Non-Dimmable)

• Ingress Protection: IP66

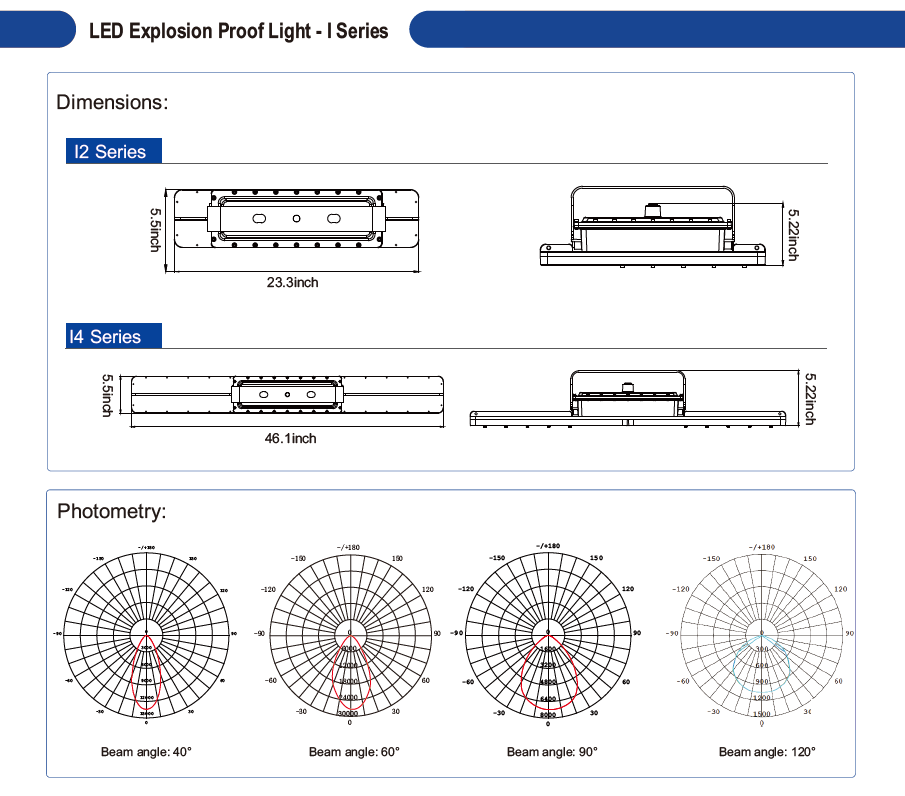

• Product Dimensions:

  • I2 (12 Series): 59.18 x 13.97 x 13.25 cm

  • I4 (14 Series): 117.1 x 13.97 x 13.25 cm

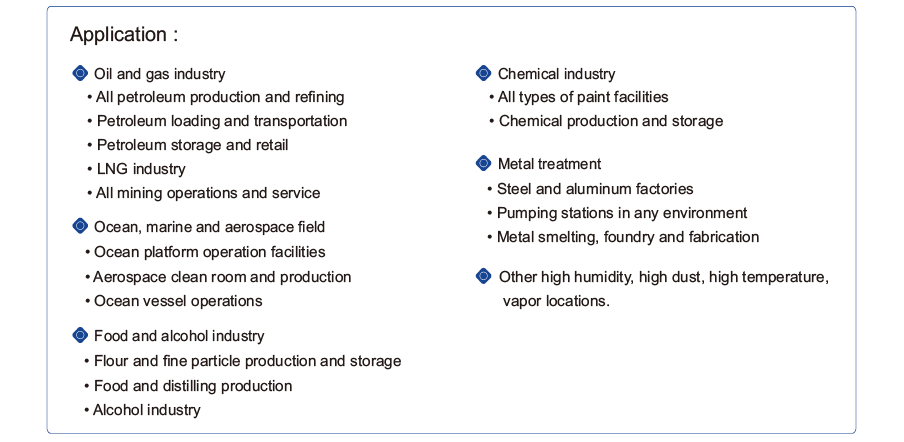

Applications:

• Oil & Gas Industry

• Marine, Ocean, Aerospace Fields

• Chemical Processing Plants

• Food & Alcohol Production

• Metal Treatment Facilities

• High Humidity / Dust / Temperature Environments
