Details

Product Description

The JLUX TG22 Marine Offshore LED Floodlight (Aluminum Model) is a high-performance lighting solution designed for demanding marine, offshore, and industrial environments. Manufactured under JLUX (OEM), this floodlight is built with a durable aluminum housing to ensure reliable performance, efficient heat dissipation, and long-lasting operation in harsh outdoor conditions.

Operating at 277V, the JLUX TG22 floodlight is available in a wide range of power options including 50W, 100W, 150W, 200W, 300W, 400W, 500W, 600W, and 800W, delivering brightness levels from 6,000 lumens up to 96,000 lumens. This wide power range allows users to select the most suitable lighting output depending on the installation area and required illumination level.

With a Color Rendering Index (CRI) of 80, the floodlight provides clear and accurate colour visibility, which is important for safety and operational efficiency in marine and industrial environments.

The fixture supports multiple colour temperature options including 3000K (Warm White), 4000K (Cool White), and 6000K (Daylight), allowing users to select the lighting tone based on application needs and environmental conditions.

Designed with an IP65 protection rating, the JLUX TG22 floodlight offers strong resistance against dust and water exposure, making it suitable for challenging outdoor environments such as offshore platforms, marine vessels, ports, industrial facilities, and large outdoor areas.

The aluminum construction combined with a heavy-duty adjustable mounting bracket ensures stable installation and flexible positioning, making the JLUX TG22 an ideal solution for professional marine and industrial lighting applications.

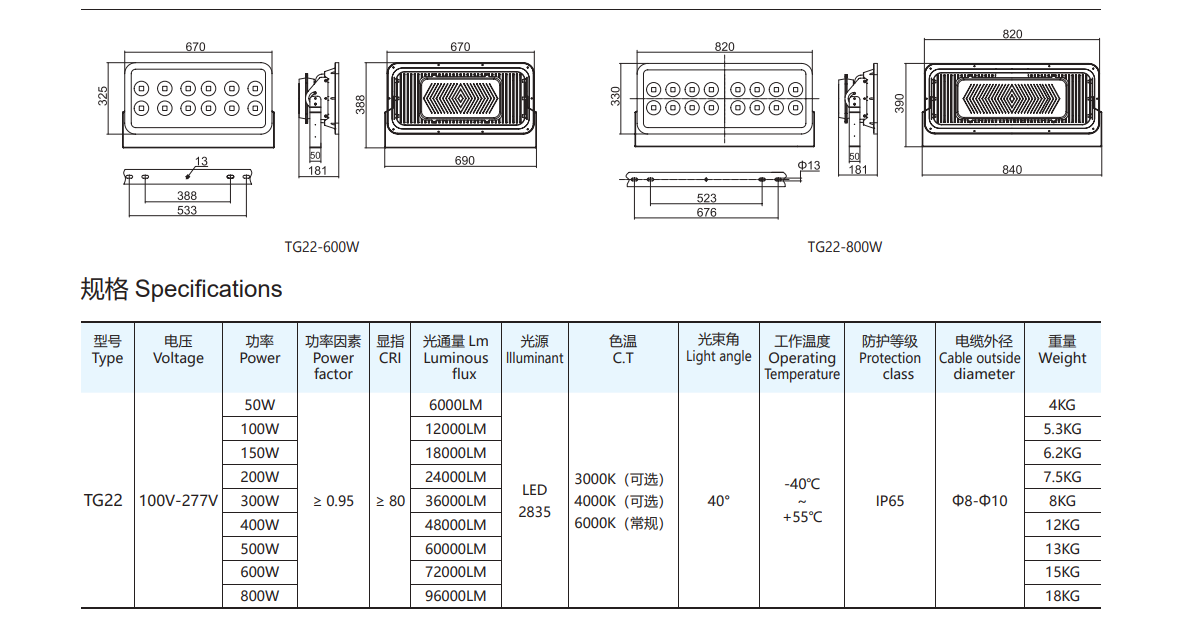

Product Specifications

Voltage (V): 277V

Color Rendering Index (CRI): CRI80

Type: Marine Offshore LED Floodlight (Aluminum Model)

Colour Temperature: 3000K / 4000K / 6000K

Wattage (W): 50W / 100W / 150W / 200W / 300W / 400W / 500W / 600W / 800W

Lumen (lm): 6,000LM / 12,000LM / 18,000LM / 24,000LM / 36,000LM / 48,000LM / 60,000LM / 72,000LM / 96,000LM

IP Rating: IP65

Mounting: Adjustable Bracket Mount

Available Variants

Power Options
• 50W – 6,000 Lumens
• 100W – 12,000 Lumens
• 150W – 18,000 Lumens
• 200W – 24,000 Lumens
• 300W – 36,000 Lumens
• 400W – 48,000 Lumens
• 500W – 60,000 Lumens
• 600W – 72,000 Lumens
• 800W – 96,000 Lumens

Colour Temperature Options
• 3000K – Warm White
• 4000K – Cool White
• 6000K – Daylight

Key Features

• High-performance LED floodlight with output up to 96,000 lumens
• Durable aluminum housing for improved heat dissipation and durability
• Designed for marine, offshore, and industrial lighting applications
• IP65 rating provides protection against dust and water exposure
• CRI80 ensures accurate colour rendering for working environments
• Wide range of wattage options for flexible lighting coverage
• Adjustable mounting bracket for stable and versatile installation

Applications

• Marine vessels
• Offshore platforms
• Ports and dockyards
• Industrial facilities
• Construction sites
• Outdoor security lighting
